Planar semiconductor-superconductor Josephson junctions

A conventional Josephson junction consists of two superconductors separated by a weak link. In the systems I study, the weak link is formed in a high-mobility semiconductor two-dimensional electron gas (2DEG) that is proximitized by superconducting electrodes. Superconducting correlations extend into the semiconductor through the proximity effect, allowing a dissipationless Josephson current to flow through a region that is not intrinsically superconducting.

Planar junctions are particularly attractive because the semiconductor weak link can be highly transparent and strongly tunable. A top gate can modify the carrier density and the junction potential, while an in-plane magnetic field couples strongly to the electronic spin through the large effective g-factor of the semiconductor. Materials such as InAs and InSb can also host strong Rashba and Dresselhaus spin-orbit coupling. Together, these ingredients provide several experimentally controllable parameters for manipulating the Andreev spectrum and the Josephson current.

Superconducting diode effect

The superconducting diode effect is a non-reciprocal form of Josephson transport in which the maximum dissipationless current depends on the direction of current flow. If the forward and reverse critical-current magnitudes are denoted by \(I_c^+\) and \(|I_c^-|\), respectively, the SDE occurs when

I characterize the strength and polarity of this response using the diode efficiency

where \(I_0\) is the zero-field critical current. A nonzero \(\eta\) indicates non-reciprocal critical currents, while a change in the sign of \(\eta\) corresponds to a reversal of the diode polarity.

A central question in my dissertation was not simply whether a diode effect exists, but what microscopic mechanism produces it. In the mechanism I investigated, inversion symmetry is broken by Rashba and/or Dresselhaus spin-orbit coupling, while time-reversal symmetry is broken by an in-plane magnetic field through the Zeeman interaction. Their interplay modifies the spin-dependent Fermi contours and the Andreev spectrum, producing a non-reciprocal current-phase relation.

Finite-momentum Cooper pairing and symmetry

One useful microscopic picture is the formation of Cooper pairs with a finite center-of-mass momentum. Rashba spin-orbit coupling creates a momentum-dependent spin texture, and an in-plane Zeeman field distorts the spin-split Fermi contours. For appropriate field orientations, the electronic states that pair no longer have exactly opposite momenta, allowing the Cooper pair to acquire a finite momentum along the current direction.

An important point, however, is that finite Cooper-pair momentum alone is not sufficient to create a phase-unbiased superconducting diode effect. A simple phase-shifted sinusoidal current-phase relation can have an anomalous ground-state phase while still producing equal forward and reverse critical-current magnitudes. The diode effect requires an additional asymmetry of the phase-dependent spectrum and, in practice, contributions beyond a single sinusoidal harmonic.

Analytical and numerical modeling

I use complementary analytical and numerical approaches based on the Bogoliubov-de Gennes (BdG) formalism. The analytical treatment considers a short-junction limit and provides compact expressions that reveal how spin-orbit coupling, Zeeman energy, and junction transparency enter the Andreev spectrum and the critical currents. This approach is particularly useful for identifying symmetry relations and understanding low-field trends.

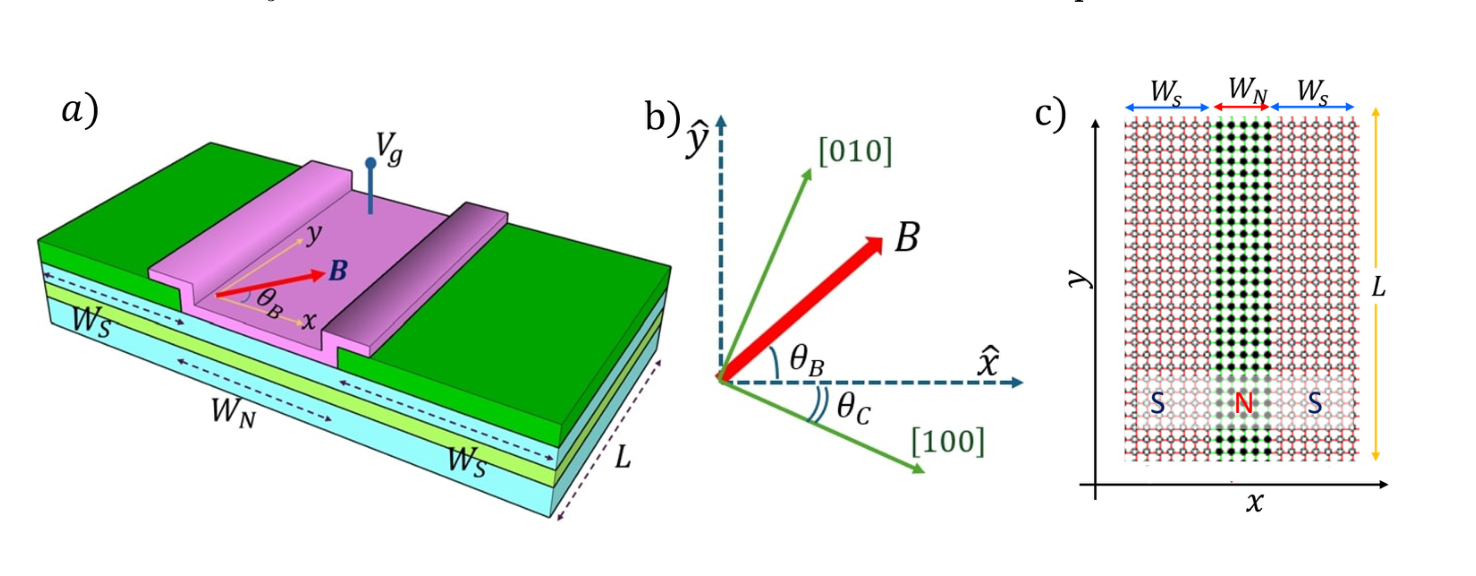

For realistic geometries, I discretize the continuum BdG Hamiltonian on a square lattice and solve the resulting tight-binding problem using Kwant and numerical diagonalization routines. From the phase-dependent quasiparticle spectrum, I calculate the free energy and obtain the Josephson current from its phase derivative. This framework allows the inclusion of realistic device dimensions, finite magnetic fields, Rashba and Dresselhaus spin-orbit coupling, and gate-induced potential changes.

Magneto-current-phase relation and Rashba spin-orbit coupling

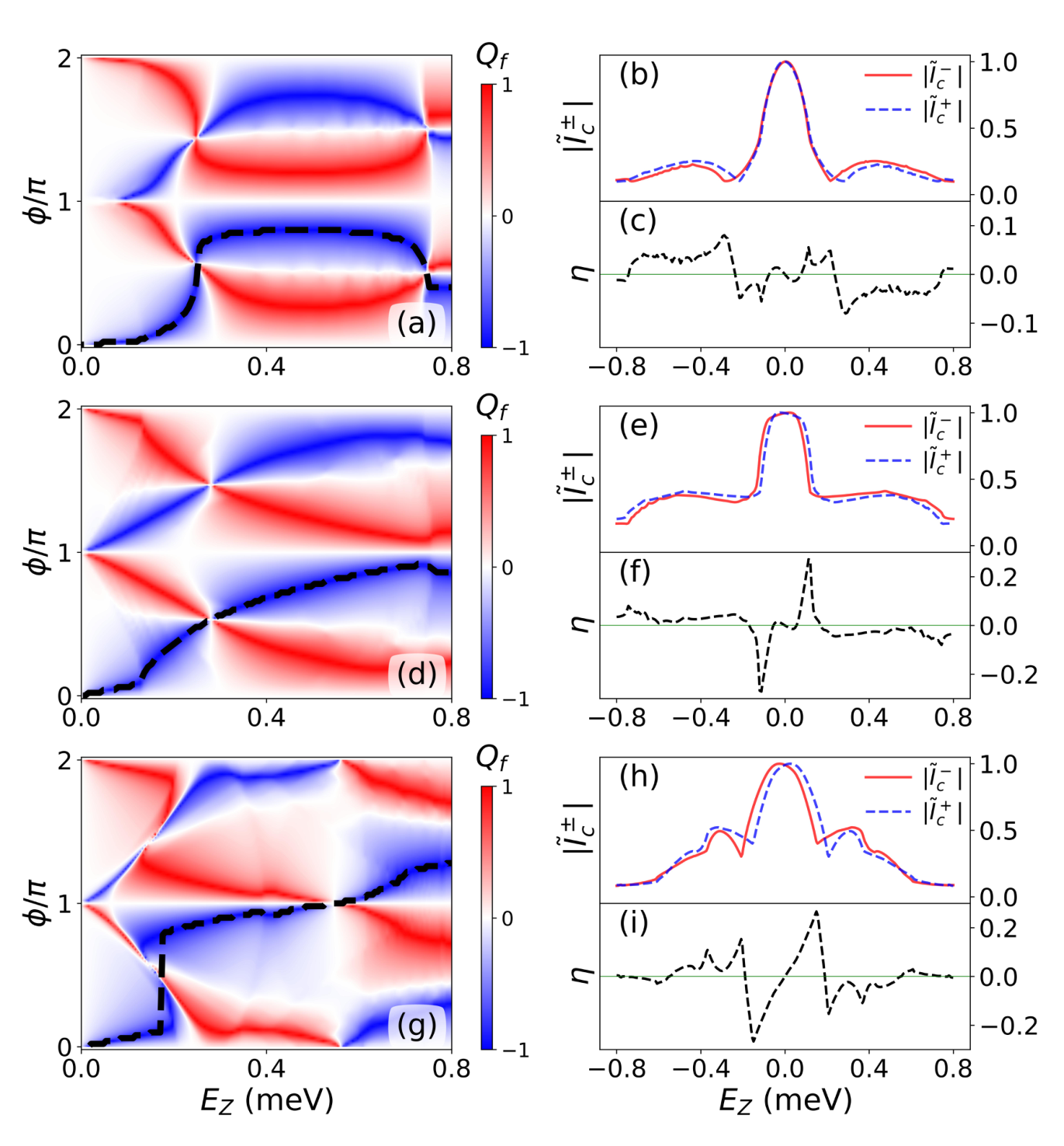

The full current-phase relation contains substantially more information than the critical current alone. I studied the magneto-current-phase relation (magneto-CPR), in which the Josephson current is resolved simultaneously as a function of superconducting phase difference and magnetic field.

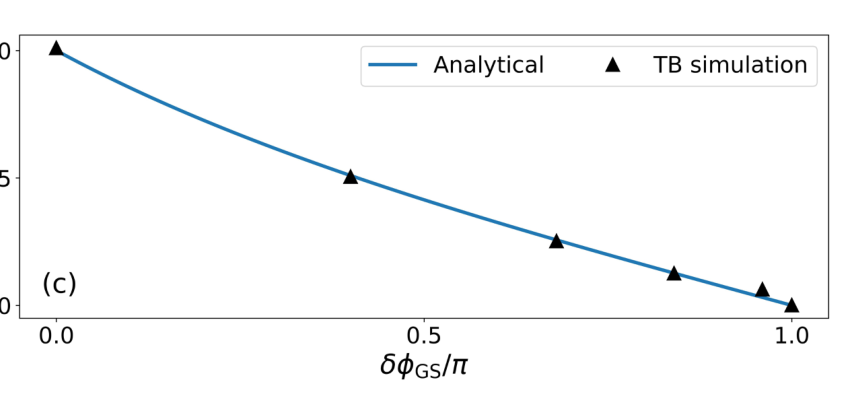

The phase-resolved current asymmetry reveals regions of positive and negative non-reciprocity and also determines the equilibrium ground-state phase of a phase-unbiased junction. As the Zeeman energy is varied, the ground-state phase can undergo discontinuous, \(0\)-\(\pi\)-like jumps. In the analytical model, the size of these jumps depends strongly on the Rashba spin-orbit-coupling strength. This provides a possible way to extract microscopic SOC information from phase-sensitive Josephson measurements.

Magnetic and crystalline anisotropy

A major part of my doctoral work was devoted to using anisotropy as a diagnostic of the microscopic origin of non-reciprocal transport. Rashba and Dresselhaus spin-orbit couplings have different symmetry properties, and this difference produces experimentally distinguishable angular signatures.

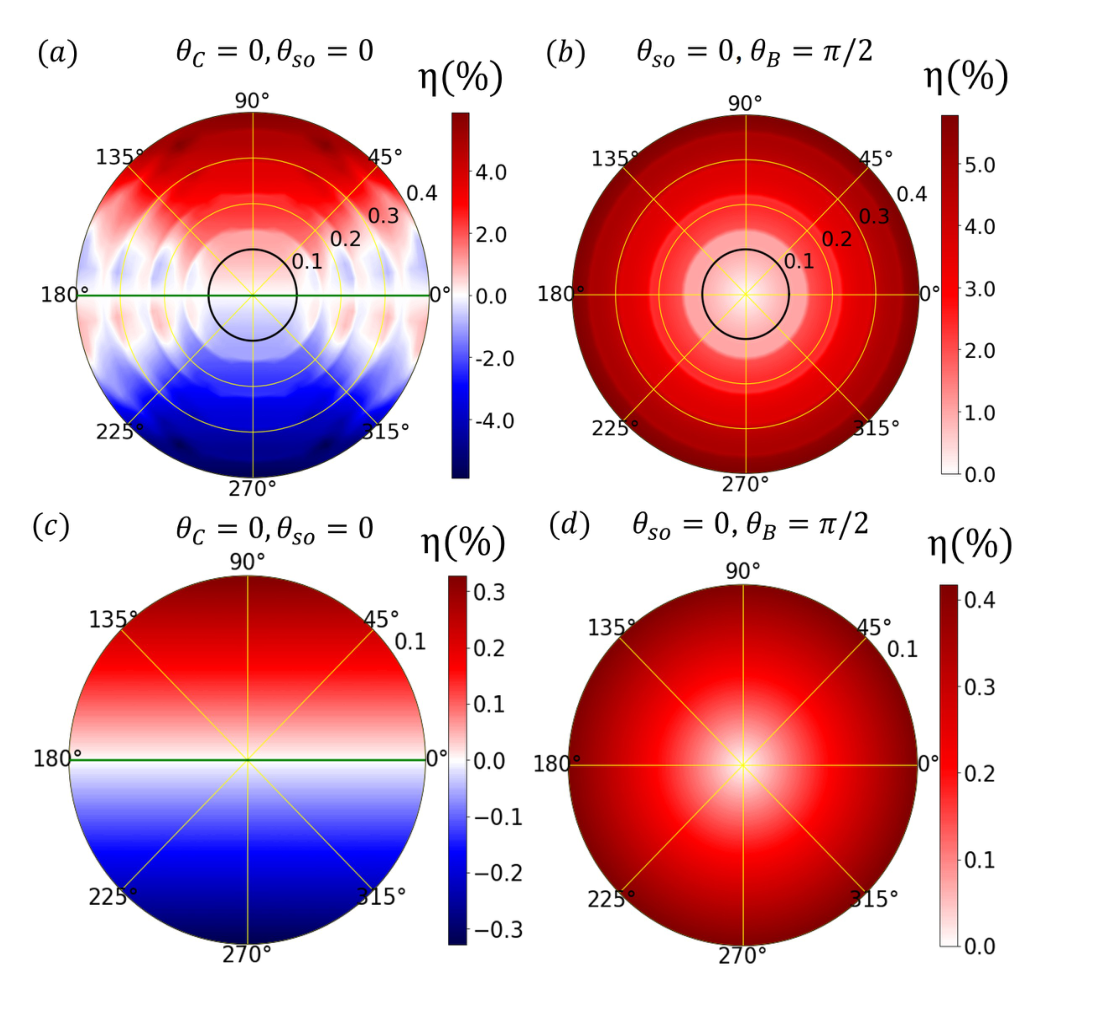

For pure Rashba SOC, the spin-orbit interaction is rotationally invariant within the plane of the 2DEG. The diode effect therefore exhibits strong magnetic anisotropy: rotating the in-plane magnetic field changes the Cooper-pair momentum and can completely suppress the SDE for symmetry-selected field directions. By contrast, there is no intrinsic crystalline anisotropy in the pure-Rashba limit.

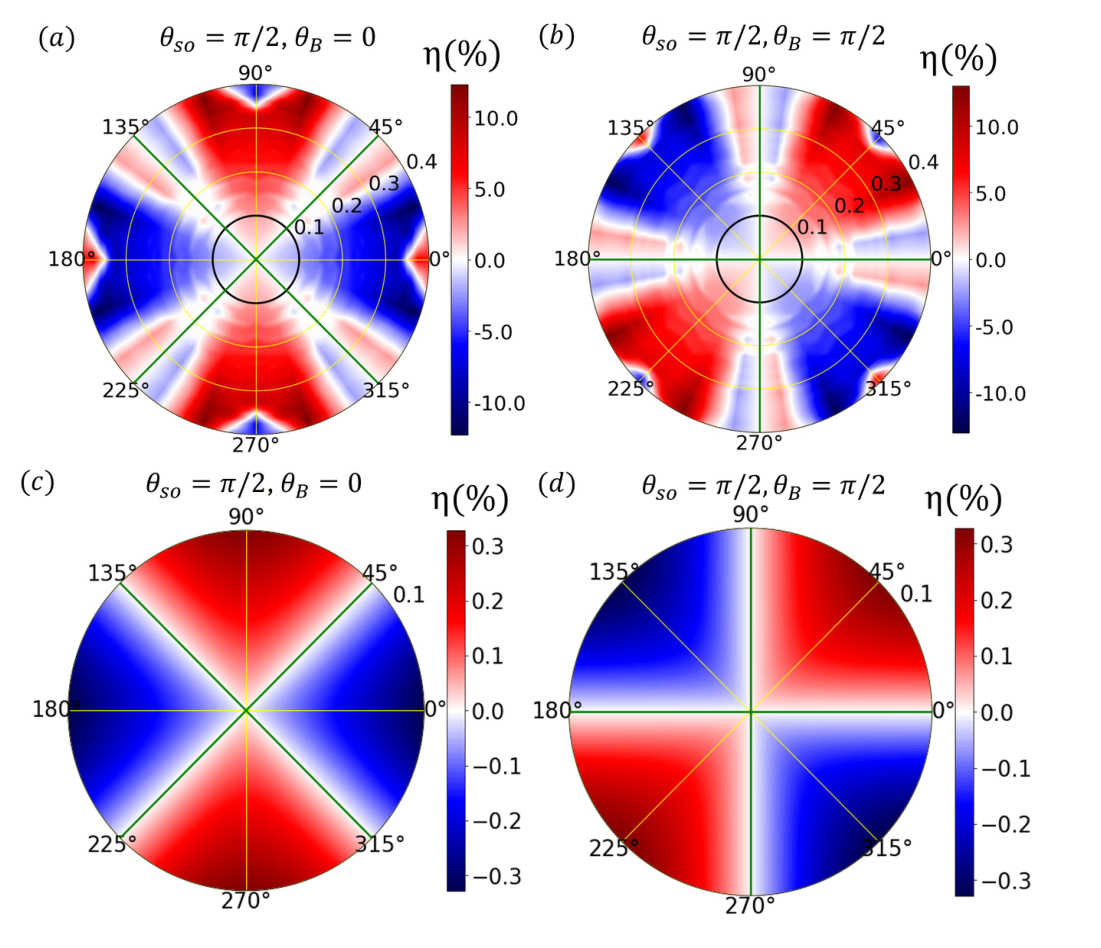

For Dresselhaus SOC, rotational symmetry is broken by the underlying crystal. The diode response then depends not only on the magnetic-field direction but also on the orientation of the junction relative to the crystallographic axes. This produces a magneto-crystalline anisotropy that can be used to distinguish Rashba- and Dresselhaus-dominated regimes and to identify symmetry-imposed zeros and polarity reversals of the SDE.

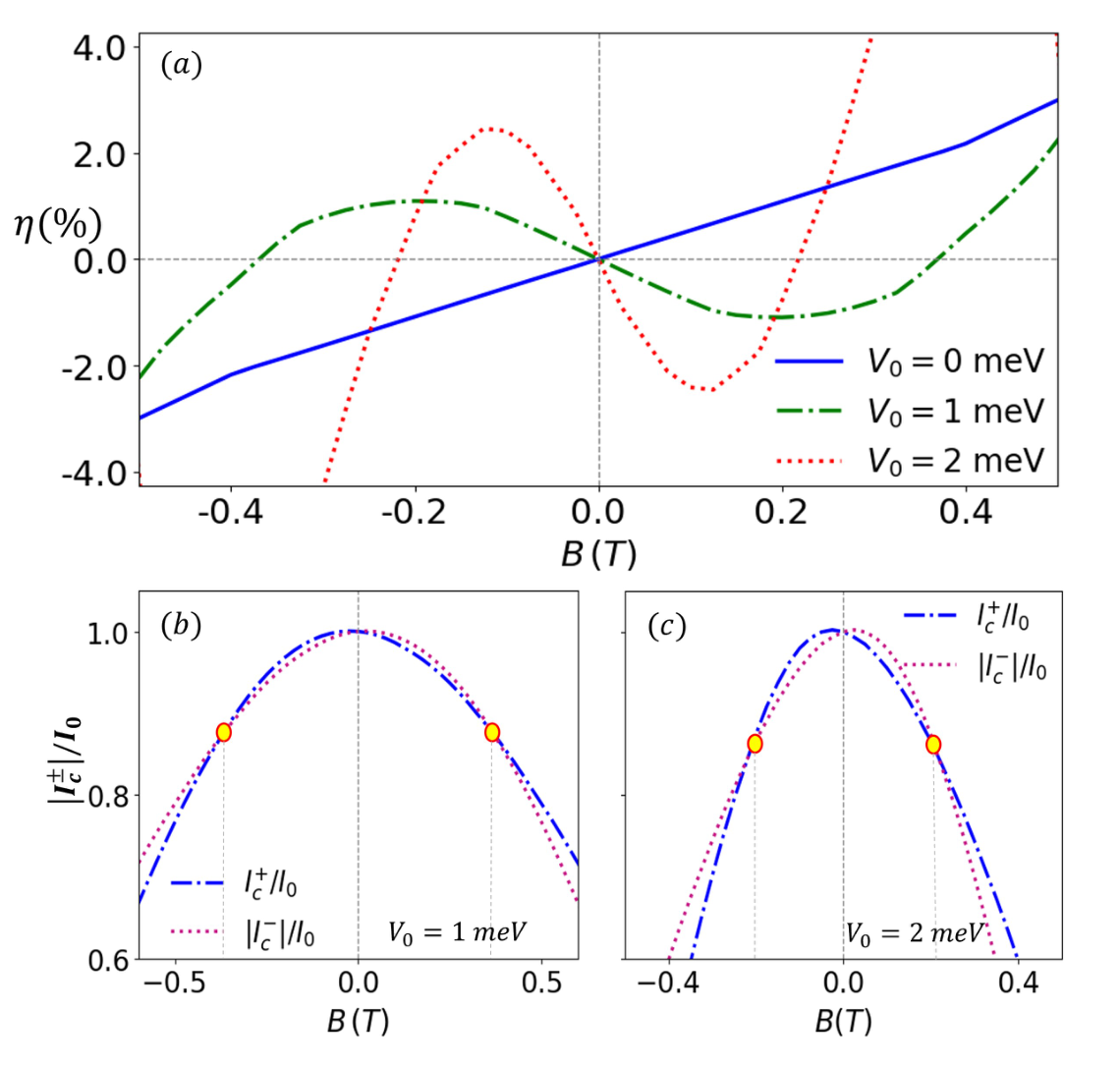

Gate control, junction transparency, and polarity reversal

Electrostatic gating provides another way to control the superconducting diode response. In the analytical model, changing the junction potential modifies the transparency of the weak link. In a nearly transparent junction, the critical-current maxima remain close to zero magnetic field; reducing the transparency shifts these maxima to finite fields and changes the low-field behavior of the diode efficiency.

In my numerical tight-binding calculations, the gate is modeled by changing the chemical potential in the non-proximitized region relative to the superconducting regions. Even in a purely Rashba system, tuning this potential can substantially modify the diode response and generate additional low-field polarity reversals. These reversals occur where the forward and reverse critical-current branches cross.
